Moving Walkways
Moving walkways (travelators) for airports, malls and large spaces — smooth, safe horizontal or inclined transit, in lengths to fit the site.
Official models for this type
Specifications approved by the manufacturers we represent — supplied, installed and maintained by SENSEI LIFT.

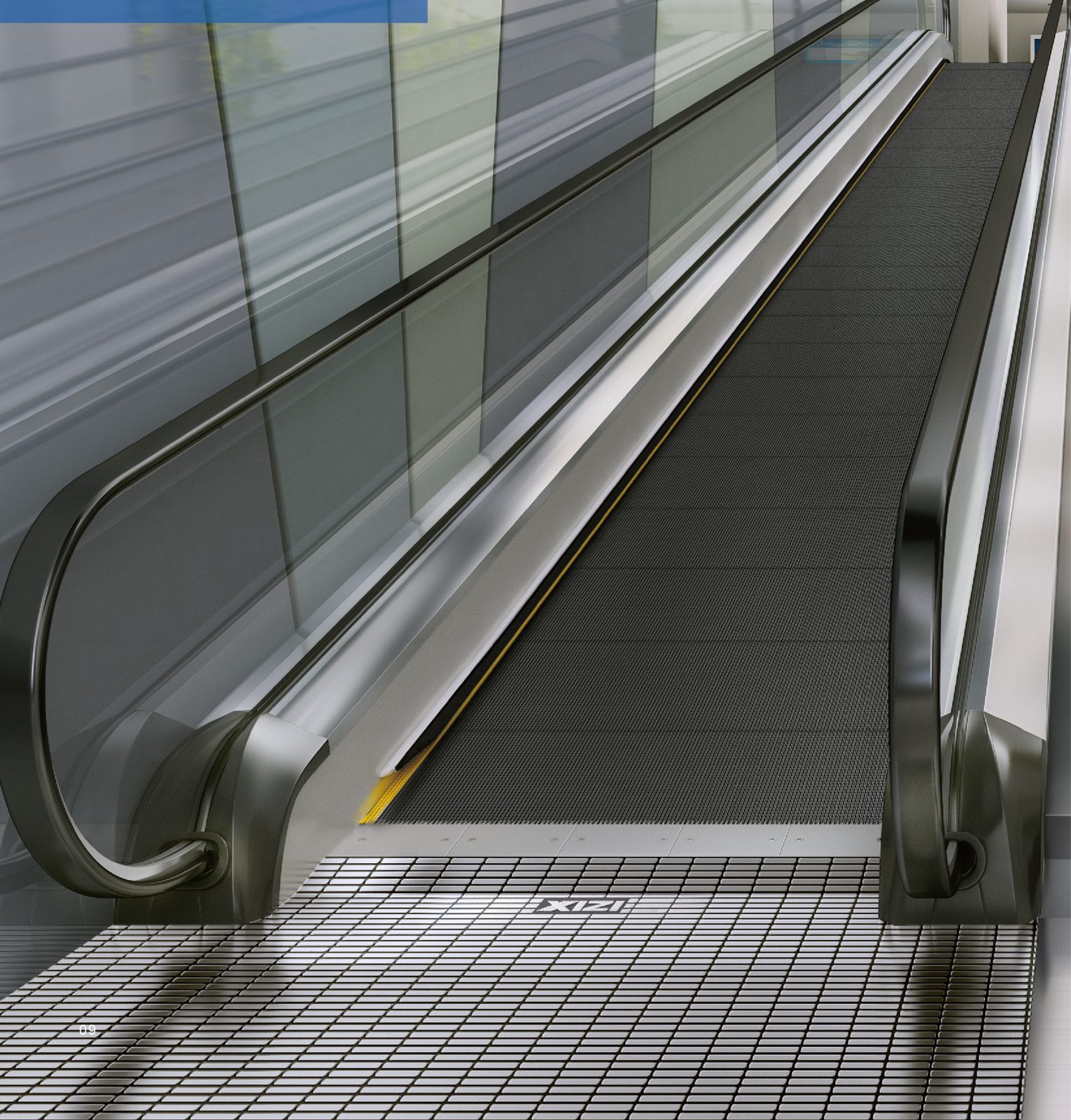

Travelator
Moving walkway for long distances and trolleys — supermarkets, airports and large malls.
- Max rise (m) — maker catalogue
- ≤6000 mm
- Inclination
- 10° / 11° / 12°
- Speed
- 0.5 m/s
- Pallet width
- 1000 / 800 mm
- Controller
- Micro control
- Truss
- Deflection 1/750 (1/1000; 1/1500)
All specifications (21)
- Machine
- Turbo-worm / helical gear
- Chain
- Roller inside
- Step
- St. steel / aluminium alloy
- Rollers
- Polyurethane
- Main drive
- Big friction wheel
- Side panel
- Overall welding
- Track system
- Profile rail
- Handrail
- C type
- Handrail guide
- St. steel / aluminium
- Balustrade
- Toughened glass / st. steel
- Skirt / decking
- St. steel
- Lubrication
- Electromagnetic pump
- Handrail entry
- Aluminium alloy
- Floor plate
- St. steel / aluminium
- Comb
- Aluminium / engineering plastics

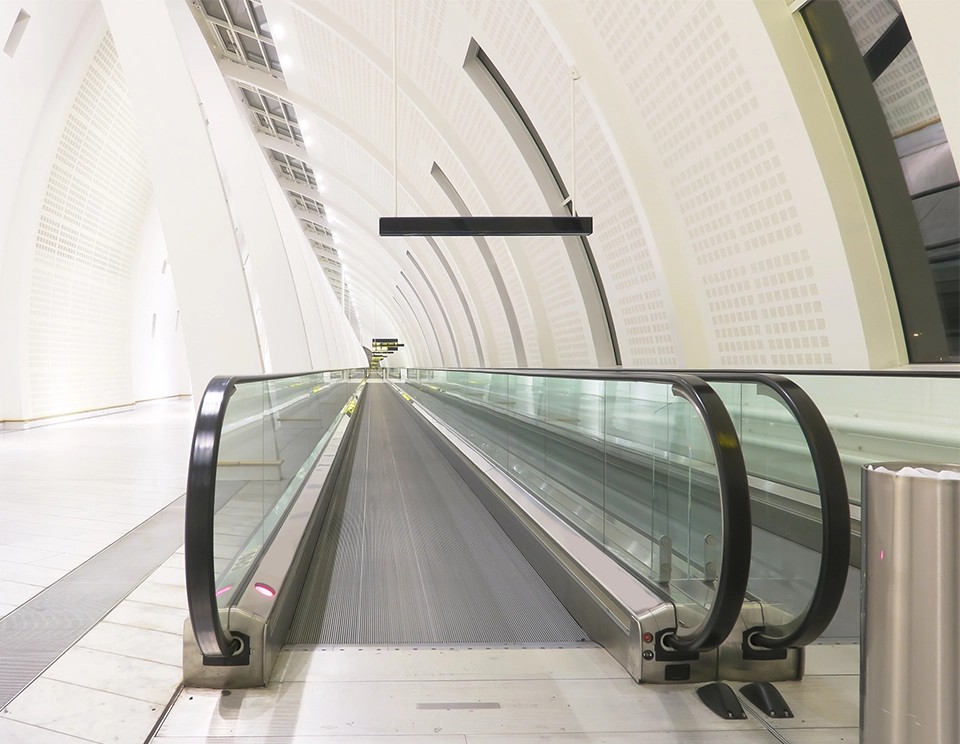

M200 / M300
Horizontal and inclined moving walks, indoor (I) and outdoor (W).
| Model | Speedm/s | Inclination | Max rise (m) — maker cataloguem |
|---|---|---|---|
| M200I | 0.5 | 12°,11°,10°,0° | 43.47 |
| M200W | 0.5 | 12°,11°,10°,0° | 43.47 |
| M300I | 0.5 | 12°,11°,10°,0° | 43.47 |
| M300W | 0.5 | 12°,11°,10°,0° | 43.47 |
Values are the manufacturer's ranges as published on its official pages (checked September 2026). Some series are sold under model codes that differ from the series name (e.g. C500 as FC200, F200 as GAH). The final configuration (load, speed, dimensions) is set by a study of your building.
A walkway for distances and trolleys
Horizontal or inclined up to 12°, with pallet width for shopping trolleys and luggage, entrances and outdoor version designed for the airport or hypermarket.
Need this for your building?
Send us your project and we'll return with a design study and offer.
