Hospital Elevators

Medical elevators for patient beds and emergencies — spacious, steady motion with smooth start-stop and practical, hygienic finishes.

Our manufacturing partners

Official models for this type

Specifications approved by the manufacturers we represent — supplied, installed and maintained by SENSEI LIFT.

FUJI

FUJI Hospital Bed Elevators

Bed elevators with a deep cabin and hygienic, easy-clean finishes — 2 official designs.

Official cabin designs (2)

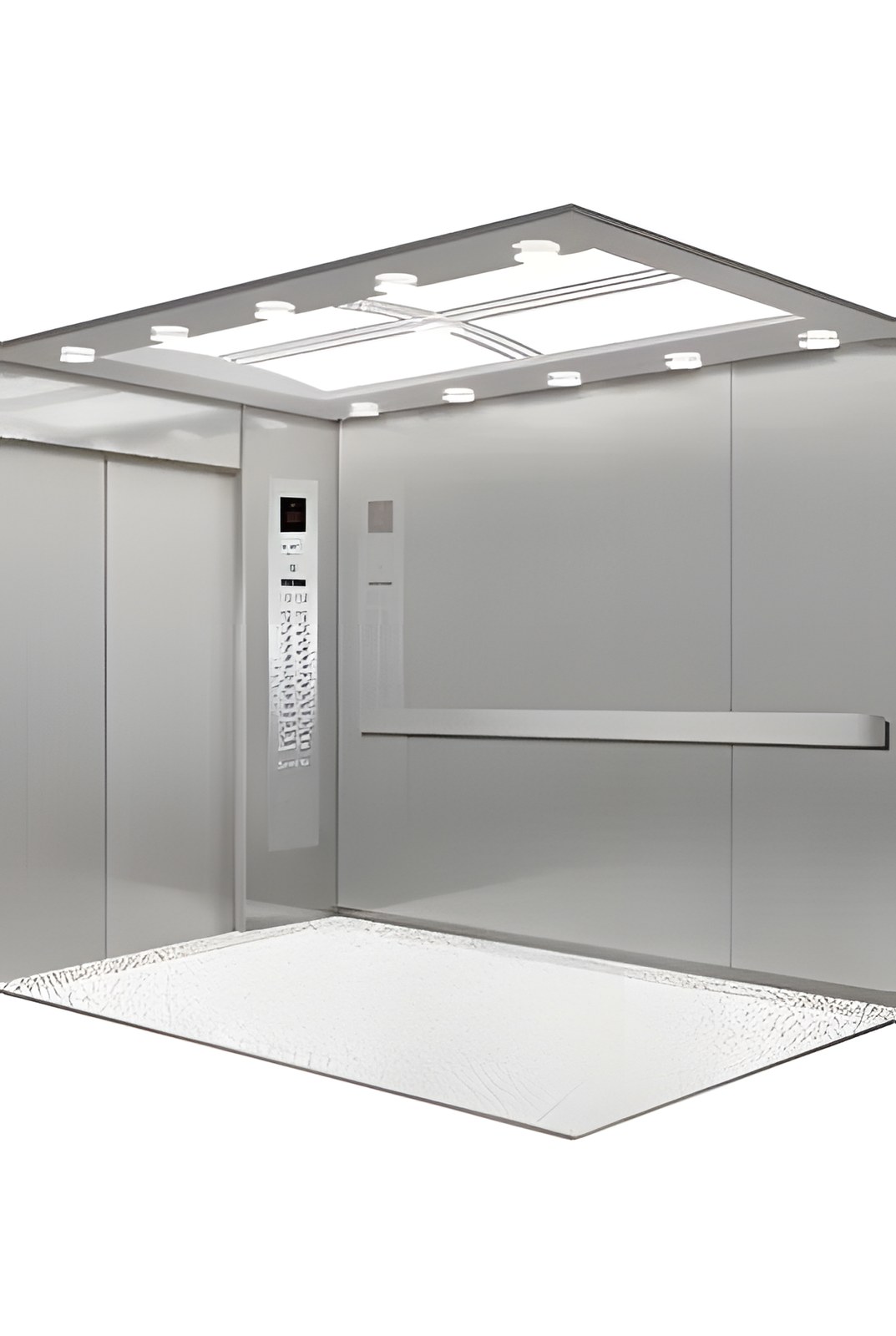

FUJI HD-BO1 — **HD-BO1**Painted-steel ceiling with decorative lighting, cream painted walls, tube handrail

FUJI HD-BO2 — **HD-BO2**Hairline-steel ceiling with vaulted acrylic light board, hairline walls, flat handrail

Load: 450 – 2000 kg (9 standard loads)
Speed: 1.0 – 6.0 m/s (8 standard speeds)
Machine room: Machine room or MRL
Controller: FUJI intelligent control with VVVF drive
Cabin materials: Painted, hairline stainless, mirror, etched, titanium gold, rose gold, glass
Floor plate: Standard PVC (optional marble)

All specifications (7)

Functions: 55 standard operation & safety functions

Request a quote for this model

XIZI

UN-BED

Gearless bed elevator with VVVF control and steady start-stop — designed for patient transport in hospitals and care homes.

Load: 1350–1600 kg
Speed: 1.0–1.75 m/s
Machine: Vito
Controller: U-Con
Door operator: Jarless-con
COP: U-CF1200

All specifications (7)

Door protection: Light curtain

Request a quote for this model

Joylive

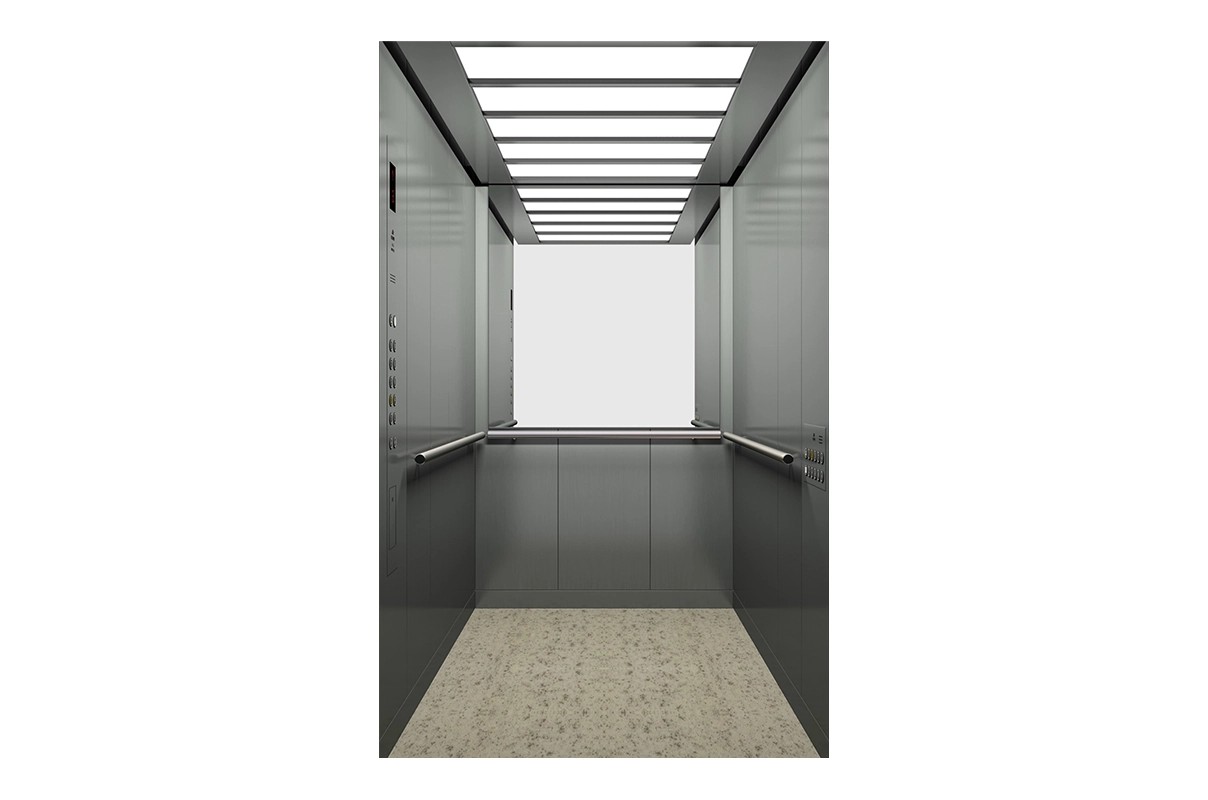

B500 Series

Hospital elevator with a deep cabin for patient beds, with a small machine room or MRL.

Model	Speedm/s	Loadkg	Max travelm
B500 SMR	1.0–4.0	800–3000	200
B500 MRL	1.0–3.0	800–3000	140

Request a quote for this model

Joylive

C500 Clean

Clean elevator for sterile zones in hospitals, laboratories and food plants.

Model	Speedm/s	Loadkg	Max travelm
FC200 MR	0.5–1.0	1000–5000	40
FC200 MR	0.25–0.5	6000–20000	25
FC200 MRL	0.5–1.0	1600–5000	40
FC200 MRL	0.5	6000–10000	25

Request a quote for this model

Values are the manufacturer's ranges as published on its official pages (checked September 2026). Some series are sold under model codes that differ from the series name (e.g. C500 as FC200, F200 as GAH). The final configuration (load, speed, dimensions) is set by a study of your building.

Design To Order

An elevator that understands the hospital

Cabin dimensions for bed, staff and equipment, gentle start-stop for patients, antibacterial finishes (optional on some models) that are easy to disinfect and emergency call priority.

Bed dimensions

Deep cabin with a door width for beds and stretchers.

Hygienic finishes

Antibacterial stainless and anti-slip flooring.

Emergency priority

Staff priority key and independent service.

Backup power

Auto-rescue and generator operation.
